TryHackMe: Block

Block was a short room about extracting hashes from a given LSASS dump and using them to decrypt SMB3 traffic inside a given packet capture file.

Initial Enumeration

We are given a zip archive at the start of the room, which includes two files, a packet capture, and a memory dump of the LSASS process.

$ zipinfo evidence-1697996360986.zip Archive: evidence-1697996360986.zip Zip file size: 43679925 bytes, number of entries: 2 -rw-r--r-- 3.0 unx 34544 bx defN 23-Oct-22 17:04 traffic.pcapng -rw-r--r-- 3.0 unx 171558408 bx defN 23-Oct-22 16:54 lsass.DMP 2 files, 171592952 bytes uncompressed, 43679601 bytes compressed: 74.5%

PCAP File

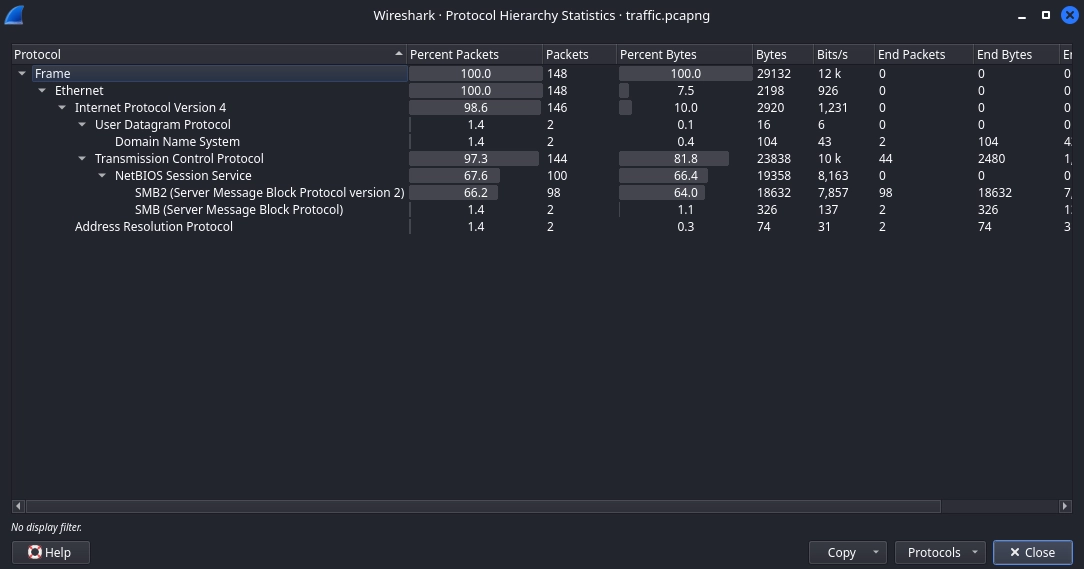

Opening the traffic.pcapng file in Wireshark and checking the statistics, we see that it mainly includes SMB traffic.

Looking at the traffic manually, first we see a login for the user mrealman.

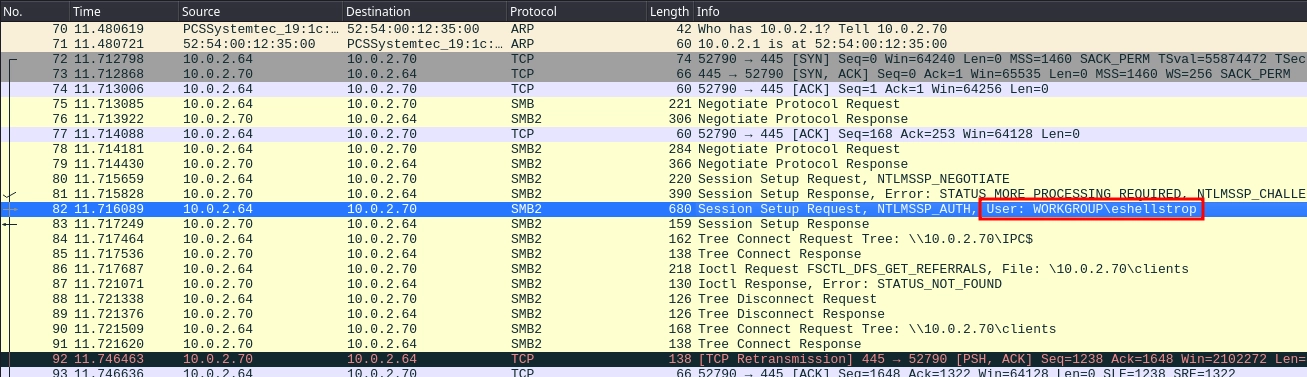

After that, we also see a login for the user eshellstrop.

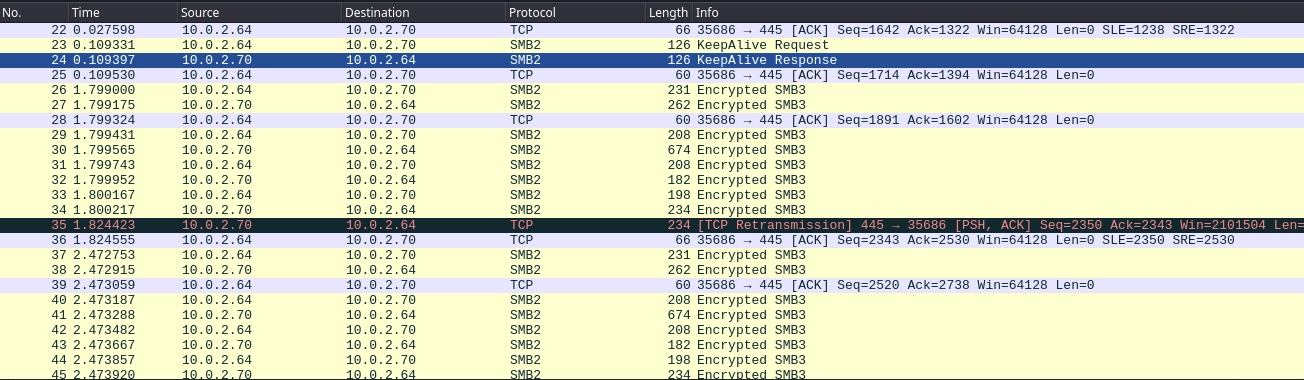

Lastly, we also see some encrypted SMB3 traffic.

LSASS.DMP

Checking the lsass.DMP file, we can see that it is a minidump for a process; from the name, we can guess the process as LSASS.

$ file lsass.DMP lsass.DMP: Mini DuMP crash report, 16 streams, Sun Oct 22 16:54:50 2023, 0x421826 type

We can use pypykatz to extract some credentials from it.

$ pypykatz lsa minidump lsass.DMP INFO:pypykatz:Parsing file lsass.DMP FILE: ======== lsass.DMP ======= == LogonSession == authentication_id 1883004 (1cbb7c) session_id 3 username mrealman domainname BLOCK logon_server WIN-2258HHCBNQR logon_time 2023-10-22T16:53:54.168637+00:00 sid S-1-5-21-3761843758-2185005375-3584081457-1104 luid 1883004 == MSV == Username: mrealman Domain: BLOCK LM: NA NT: 1f9175a516211660c7a8143b0f36ab44 SHA1: ccd27b4bf489ffda2251897ef86fdb488f248aef DPAPI: 3d618a1fffd6c879cd0b056910ec0c31 == WDIGEST [1cbb7c]== username mrealman domainname BLOCK password None password (hex) == Kerberos == Username: mrealman Domain: BLOCK.THM == WDIGEST [1cbb7c]== username mrealman domainname BLOCK password None password (hex) ... == LogonSession == authentication_id 828825 (ca599) session_id 2 username eshellstrop domainname BLOCK logon_server WIN-2258HHCBNQR logon_time 2023-10-22T16:46:09.215626+00:00 sid S-1-5-21-3761843758-2185005375-3584081457-1103 luid 828825 == MSV == Username: eshellstrop Domain: BLOCK LM: NA NT: 3f29138a04aadc19214e9c04028bf381 SHA1: 91374e6e58d7b523376e3b1eb04ae5440e678717 DPAPI: 87c8e56bc4714d4c5659f254771559a8 == WDIGEST [ca599]== username eshellstrop domainname BLOCK password None password (hex) == Kerberos == Username: eshellstrop Domain: BLOCK.THM == WDIGEST [ca599]== username eshellstrop domainname BLOCK password None password (hex) == DPAPI [ca599]== luid 828825 key_guid c03cf95e-ff22-4fe9-aac6-93b9586d37c8 masterkey b0bf26e3ee42acb190007958d5514a966ba87f4425d14688566b9a31e0fd98687bf28c9b5a21bc47f53380967cd871d5b56023b7318cd04d9cf4ba6663cd4d9c sha1_masterkey c7bee2cb7cdd6eb62201adda6d034ea41a126c7c ...

With this, we get the NT hash of two users from the packet capture file:

• mrealman:1f9175a516211660c7a8143b0f36ab44
• eshellstrop:3f29138a04aadc19214e9c04028bf381

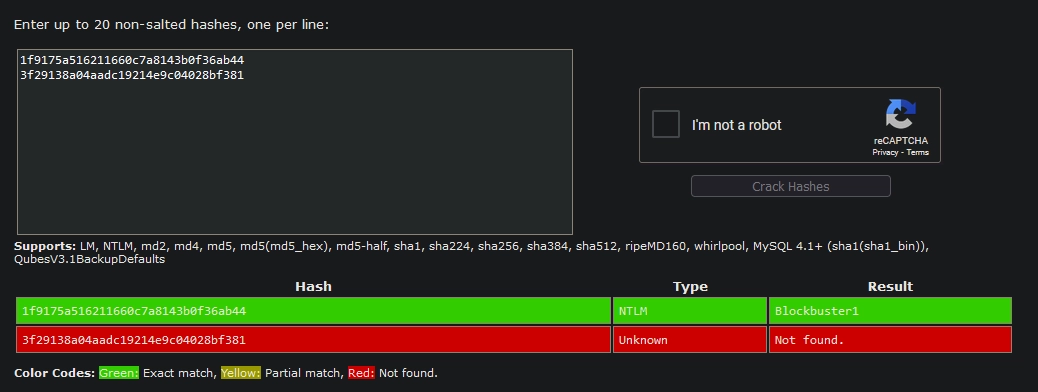

We are also able to crack the hash for mrealman using CrackStation.

Decrypting the SMB3 Traffic

Going back to the packet capture and looking for ways to decrypt the SMB3 traffic, we came across this article.

The article mentions that we can use the Key Exchange Key to decrypt the Encrypted Session Key and get the Random Session Key and use that to decrypt the SMB3 traffic.

It also mentions that we can use username, domain, NT hash or password, and NTProofStr to calculate the Key Exchange Key.

Going over all the stuff we need, we already have all of them.

• username -> Found in traffic.pcapng
• domain -> Found in traffic.pcapng
• NTProofStr -> Found in traffic.pcapng
• NT Hash or Password -> Found in lsass.DMP

With these, we can calculate the Key Exchange Key.

At last, we need the Encrypted Session Key, which can also be found in the traffic.pcapng file.

Article also shares a Python script for calculating the Key Exchange Key and decrypting the Encrypted Session Key. But, it is written for Python2. So, I have updated it to Python3 and also added functionality to accept NTLM hash as an argument instead of the password.

import hashlib import hmac import argparse from Cryptodome.Cipher import ARC4 from Cryptodome.Cipher import DES from Cryptodome.Hash import MD4 def generateEncryptedSessionKey(keyExchangeKey, exportedSessionKey): cipher = ARC4.new(keyExchangeKey) sessionKey = cipher.encrypt(exportedSessionKey) return sessionKey parser = argparse.ArgumentParser(description="Calculate the Random Session Key based on data from a PCAP (maybe).") parser.add_argument("-u", "--user", required=True, help="User name") parser.add_argument("-d", "--domain", required=True, help="Domain name") credential = parser.add_mutually_exclusive_group(required=True) credential.add_argument("-p", "--password", help="Password of User") credential.add_argument("-H", "--hash", help="NTLM Hash of User") parser.add_argument("-n", "--ntproofstr", required=True, help="NTProofStr. This can be found in PCAP (provide Hex Stream)") parser.add_argument("-k", "--key", required=True, help="Encrypted Session Key. This can be found in PCAP (provide Hex Stream)") parser.add_argument("-v", "--verbose", action="store_true", help="increase output verbosity") args = parser.parse_args() #Upper Case User and Domain user = args.user.upper().encode("utf-16le") domain = args.domain.upper().encode("utf-16le") if args.password: # If password is supplied create 'NTLM' hash of password passw = args.password.encode("utf-16le") hash1 = hashlib.new("md4", passw).digest() else: hash1 = bytes.fromhex(args.hash) # Calculate the ResponseNTKey h = hmac.new(hash1, digestmod=hashlib.md5) h.update(user + domain) respNTKey = h.digest() # Use NTProofSTR and ResponseNTKey to calculate Key Excahnge Key NTproofStr = bytes.fromhex(args.ntproofstr) h = hmac.new(respNTKey, digestmod=hashlib.md5) h.update(NTproofStr) KeyExchKey = h.digest() # Calculate the Random Session Key by decrypting Encrypted Session Key with Key Exchange Key via RC4 RsessKey = generateEncryptedSessionKey(KeyExchKey, bytes.fromhex(args.key)) if args.verbose: print("USER WORK: " + user.hex() + "" + domain.hex()) print("PASS HASH: " + hash1.hex()) print("RESP NT: " + respNTKey.hex()) print("NT PROOF: " + NTproofStr.hex()) print("KeyExKey: " + KeyExchKey.hex()) print("Random SK: " + RsessKey.hex())

Let’s start by gathering the values we need for decrypting the session for mrealman.

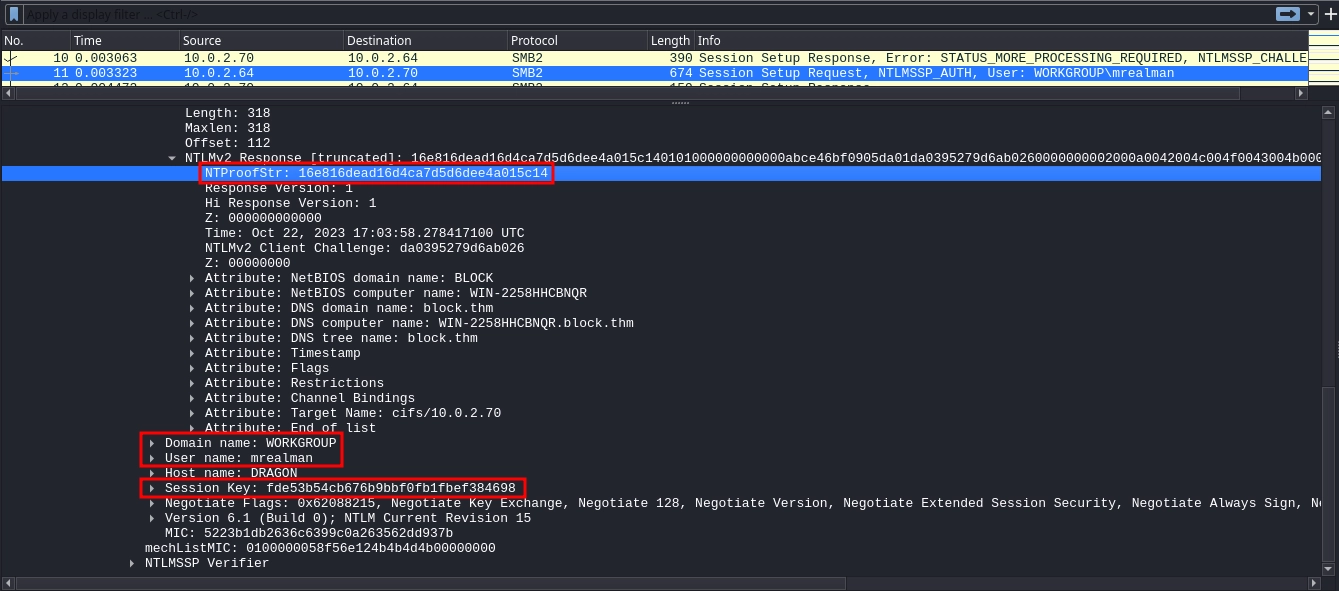

What we need can be found inside the packet 11.

• Username: mrealman
• Domain: WORKGROUP
• NTProofStr: 16e816dead16d4ca7d5d6dee4a015c14
• Encrypted Session Key: fde53b54cb676b9bbf0fb1fbef384698

And we already have the password for the user from cracking the hash found inside lsass.DMP.

• Password: Blockbuster1

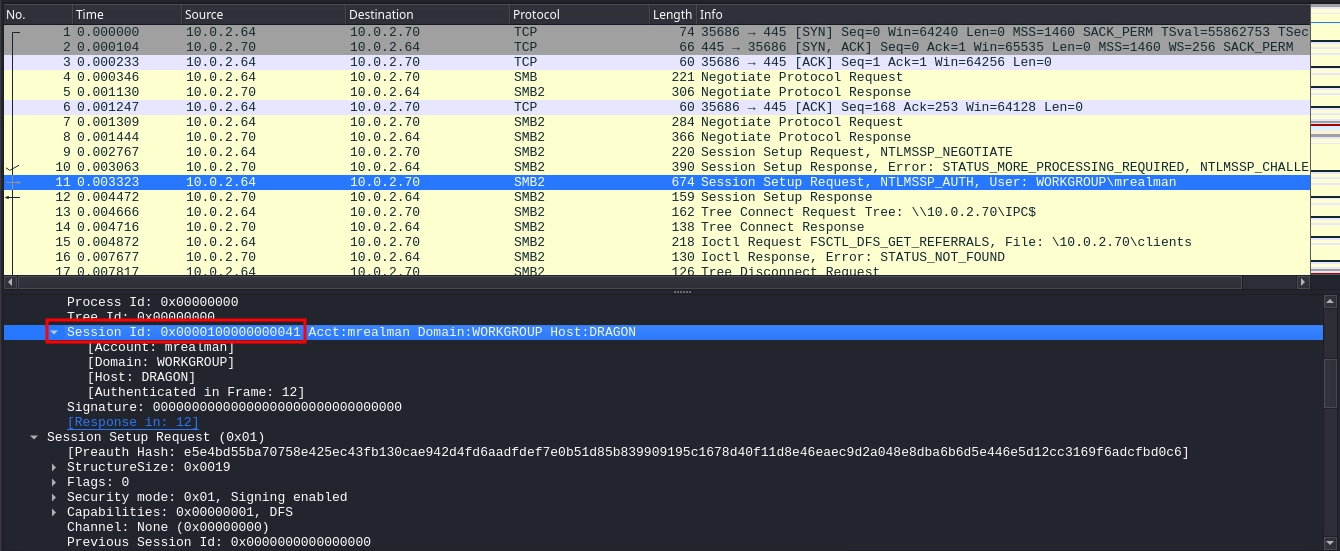

We also make a note of Session ID, since we will need it in a minute.

• Session ID: 0x0000100000000041

Now that we have everything we need, we can run the script to get the Random Session Key.

$ python3 gen_rsk.py -u 'mrealman' -d 'WORKGROUP' -p 'Blockbuster1' -n '16e816dead16d4ca7d5d6dee4a015c14' -k 'fde53b54cb676b9bbf0fb1fbef384698' -v USER WORK: 4d005200450041004c004d0041004e0057004f0052004b00470052004f0055005000 PASS HASH: 1f9175a516211660c7a8143b0f36ab44 RESP NT: 110fd571fec8b2d44728e3d4d6f32f0a NT PROOF: 16e816dead16d4ca7d5d6dee4a015c14 KeyExKey: 17e09b2c9b92045329a4382898f50159 Random SK: 20a642c086ef74eee26277bf1d0cff8c

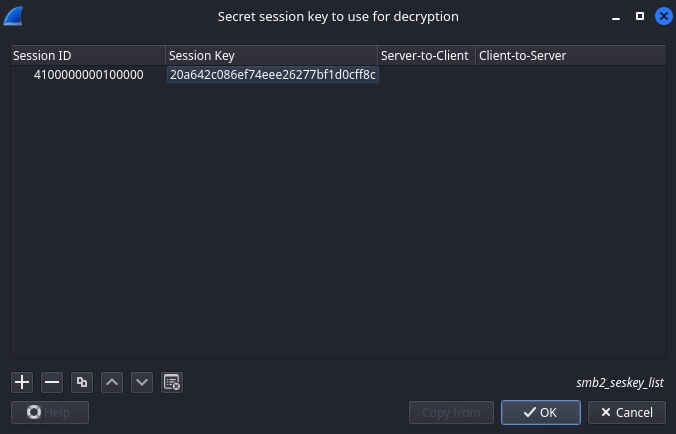

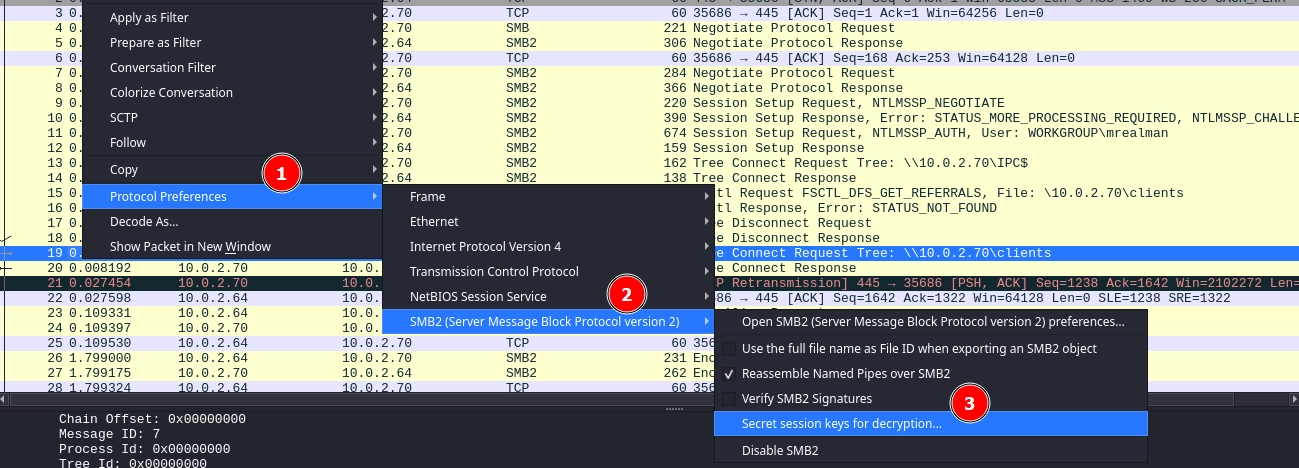

We can add it to Wireshark to decrypt the traffic.

We need to reverse the bytes on the session ID due to endianness.

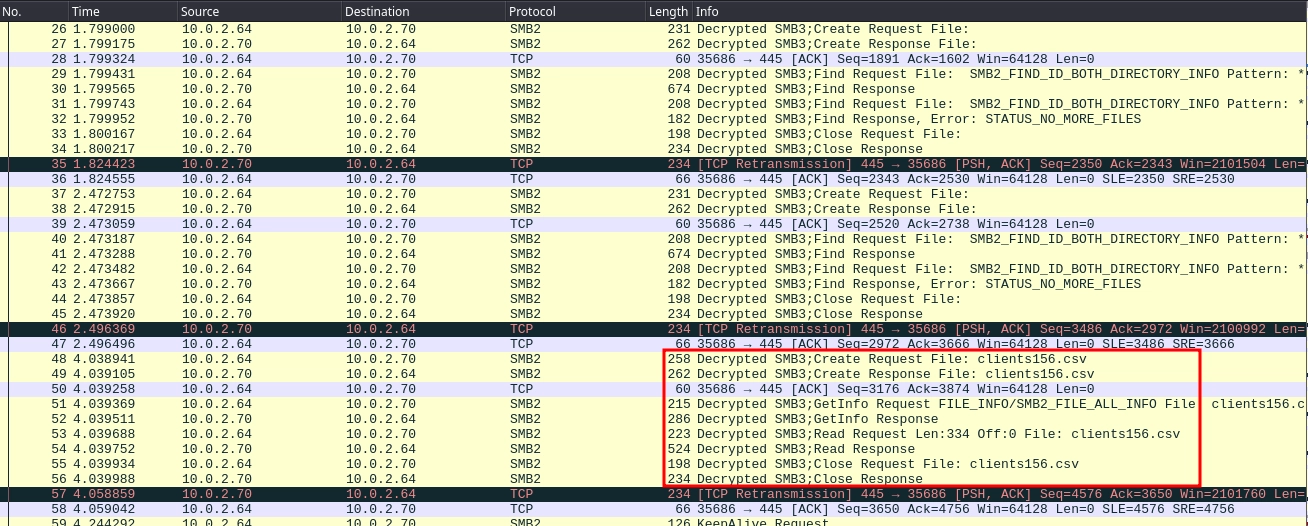

After adding the session key, we can see that the SMB3 traffic is now decrypted. We also see the user accessing the clients156.csv file.

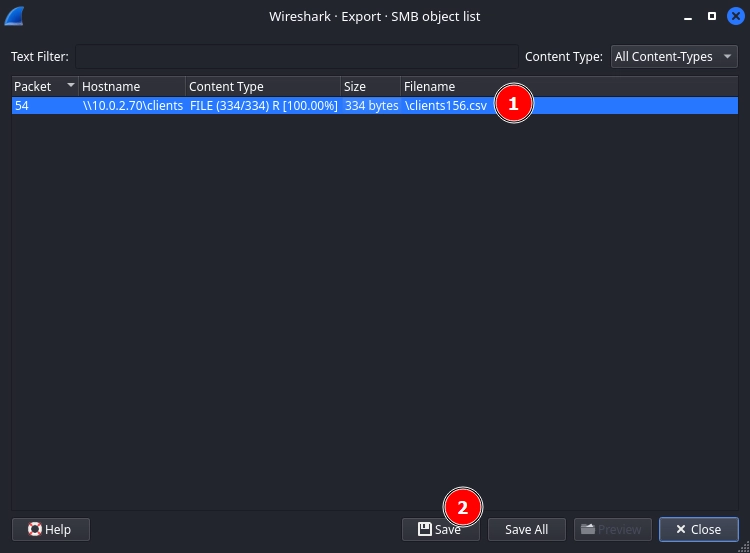

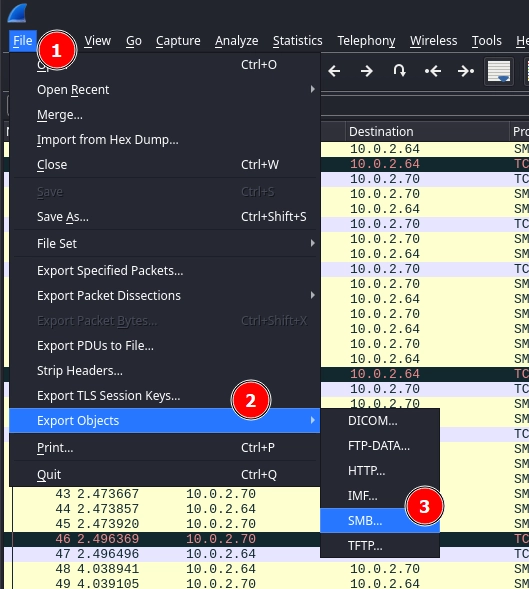

We can use Wireshark to export the file like so:

Reading the clients156.csv file, we get the first flag.

$ cat %5cclients156.csv first_name,last_name,password Jewell,Caseri,eS8/y*t?8$ Abey,Sigward,yB0{g_>KezO Natassia,Freeth,tS2<1Fef9tiF Verina,Wainscoat,kT8/2uEMH Filia,Sommerling,oE9.2c?Sce Farris,Busst,THM{[REDACTED]} Bat,Oakes,gE0%f@'qw}s% Verina,Jedrachowicz,wK4~4L\O Caril,Wolfarth,yQ3$Ji0~f7aB>F{ Bordie,Baume,iM1}"x)yP'`2|S ,,

Now, we can do the same for the session of the user eshellstrop.

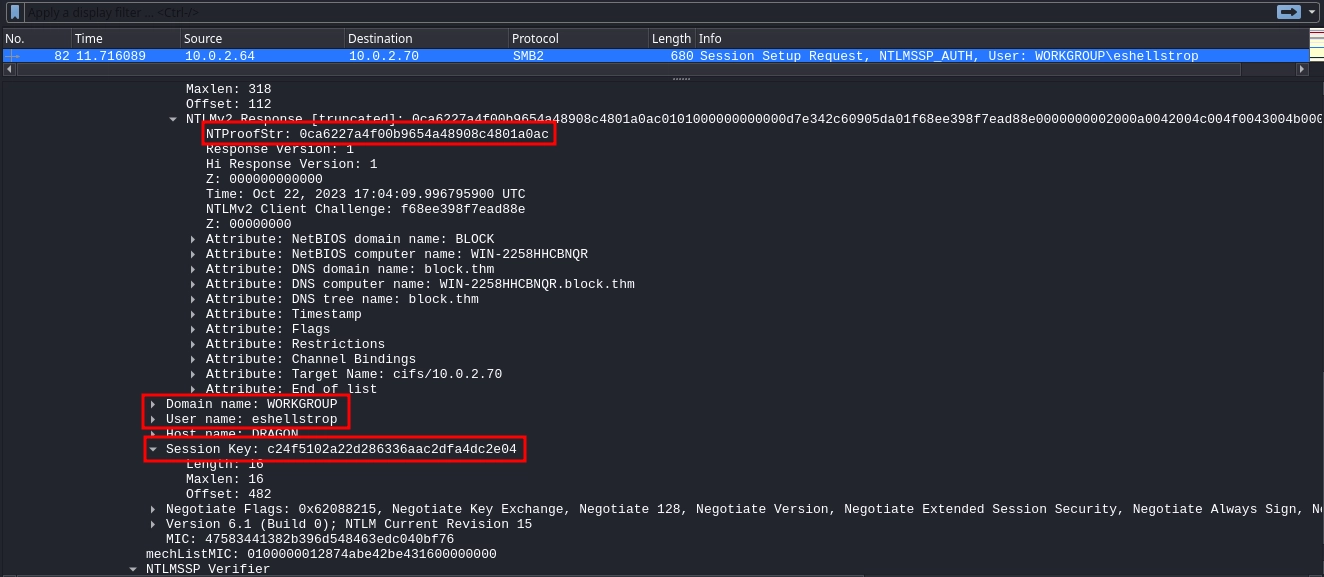

We find the values we need inside the packet 82.

• Username: eshellstrop
• Domain: WORKGROUP
• NTProofStr: 0ca6227a4f00b9654a48908c4801a0ac
• Encrypted Session Key: c24f5102a22d286336aac2dfa4dc2e04

And we already have the NTLM hash for the user.

• NTLM Hash: 3f29138a04aadc19214e9c04028bf381

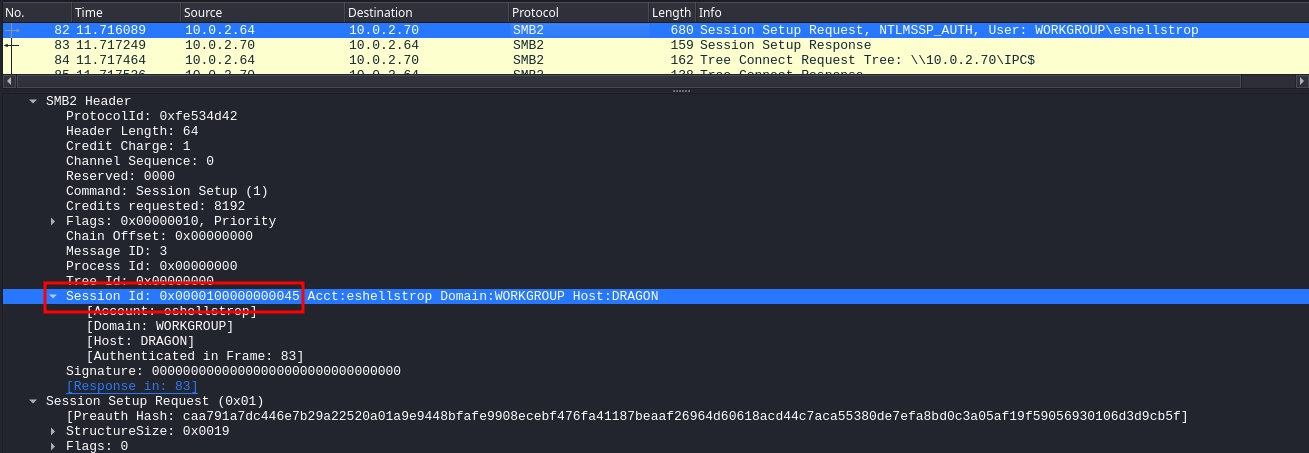

Once again, also noting the Session ID.

• Session Id: 0x0000100000000045

Running the script to calculate the Random Session Key.

$ python3 gen_rsk.py -u 'eshellstrop' -d 'WORKGROUP' -H '3f29138a04aadc19214e9c04028bf381' -n '0ca6227a4f00b9654a48908c4801a0ac' -k 'c24f5102a22d286336aac2dfa4dc2e04' -v USER WORK: 45005300480045004c004c005300540052004f00500057004f0052004b00470052004f0055005000 PASS HASH: 3f29138a04aadc19214e9c04028bf381 RESP NT: f48087e449d58b400e283a27914209b9 NT PROOF: 0ca6227a4f00b9654a48908c4801a0ac KeyExKey: 9754d7acae384644b196c05cda5315df Random SK: facfbdf010d00aa2574c7c41201099e8

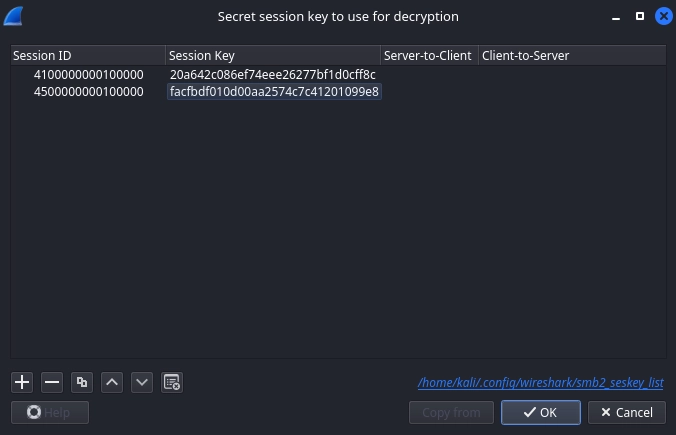

Adding it to the list of SMB session keys on Wireshark the same way as before.

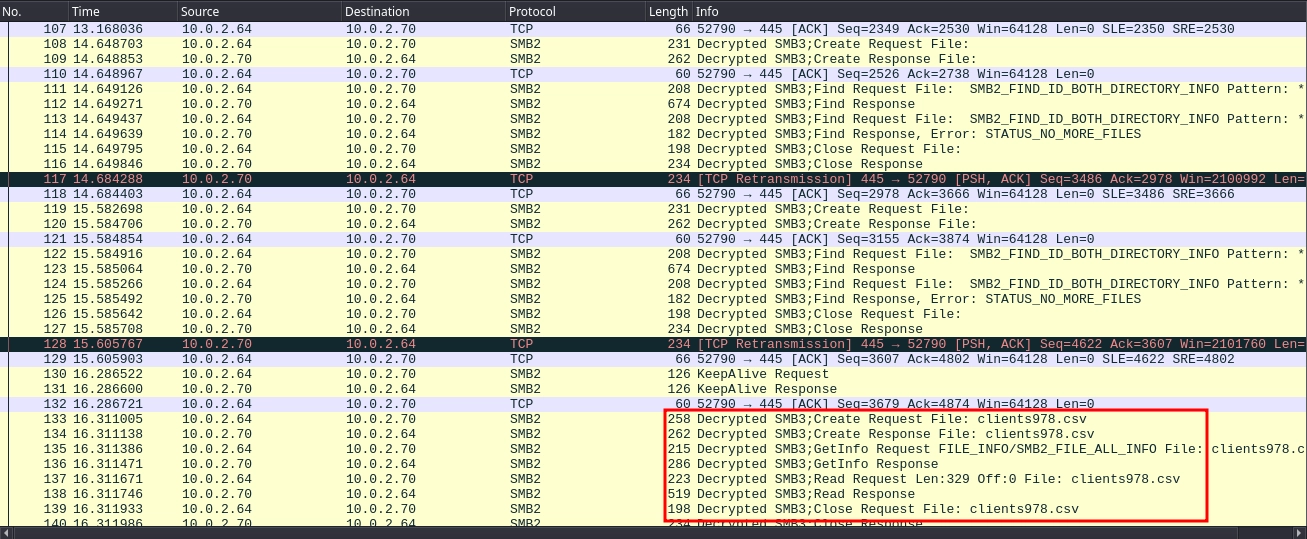

Once again, we see that the SMB3 traffic is decrypted, and this time we see the user accessing the clients978.csv file.

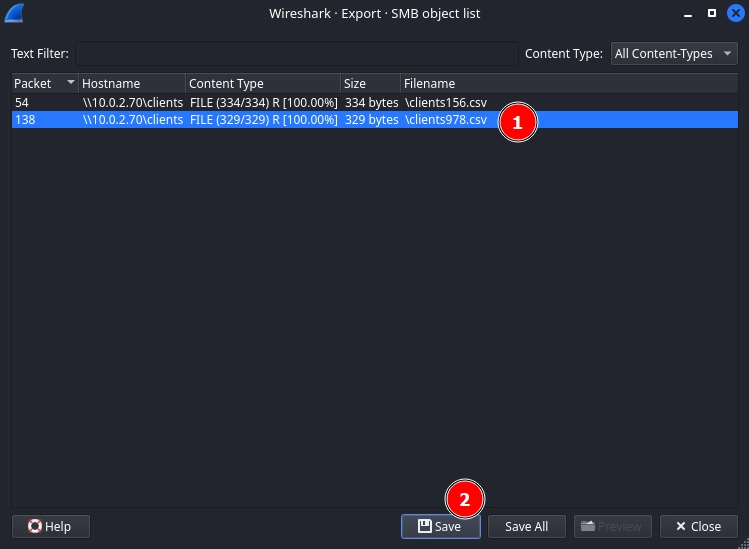

Exporting it the same way as before.

Reading the clients978.csv file, we find the second flag and complete the room.

$ cat %5cclients978.csv first_name,last_name,password Fran,McCane,vP5{|r$IYDDu Fredrika,Delea,qU2!&Bev Josefa,Keir,hX0)gq54I"%d Joannes,Greatham,vS1)N,z1X1rc Courtenay,Keble,lV6|0aiSZL@@`bbM Tonye,Risebrow,THM{[REDACTED]} Joleen,Balog,tK9'ZapdU.'igGs Clementia,Kilsby,uC6!Bx}`Xe Mason,Woolvett,eL0$NO)FRY1IT Rozele,Izachik,wA8>11$,'0,b+ ,,
